Solvent-free hot-bonding process
PE Anti-Corrosion Tape
Polyethylene Anti-Corrosion Tape
A polyethylene tape using a roughened HDPE film substrate and modified bituminous rubber adhesive for steel pipelines, fittings and components.
Overview
System role and composition
Pipeline coating and protective tape
- HDPE roughened film substrate
- Modified bituminous rubber adhesive
- Thin-adhesive and thick-adhesive configurations available
Key advantages
Approved product and system characteristics
Statements below apply only to this product or stated system and must be read with the listed conditions and qualifiers.
High initial tack and high cohesion
No adhesive delamination under the stated conditions
High dielectric strength and electrical insulation
Heat-aging resistance
Typical applications
Where this solution is considered
- Steel pipelines
- Pipeline fittings and components
- Buried asset coating systems where specified
Typical Sizes and Packaging
- Thickness: 0.4–2.0 mm
- Width: 50–300 mm
- Length: 15 / 20 / 50 / 60 m per roll
Product formats, packaging and available grades may vary by application and order requirements. Please confirm the current configuration with our team.
Installation overview
Confirm the complete procedure before work begins
- Inspect the substrate, geometry, existing coating and service environment.
- Prepare the surface to the requirement stated for the selected system.
- Apply the compatible primer or profiling material where the system calls for it.
- Install the primary tape with the specified overlap, tension and termination treatment.
- Add compatible outer protection where required, then inspect continuity and terminations.
Matching components
This overview supports early evaluation. The current TDS and approved project procedure remain the controlling installation documents.

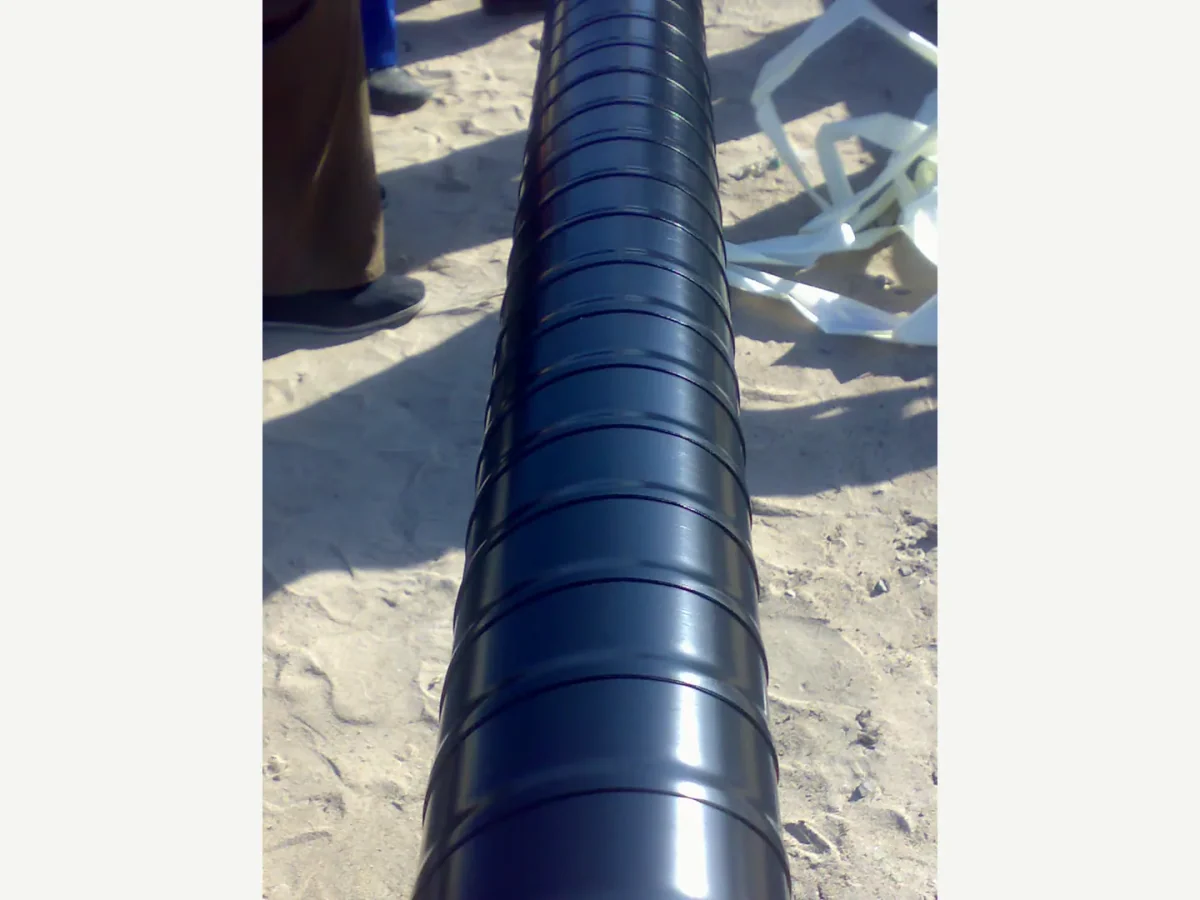

Gallery
Product and application views
Related applications
Continue from product to asset
Technical documents
Request the documents relevant to your evaluation
Product catalog, technical data, safety information and installation guidance are supplied according to the selected product and application.
Content source: Zhuohuang Technical Data Sheets UAE 2026 (primary); Zhuohuang Product Catalogue UAE 2026 (secondary).
Frequently asked questions
Which adhesive configurations are available?
Thin-adhesive and thick-adhesive configurations are available; confirm the current configuration for the project.
What substrate is used?
The tape uses a roughened HDPE film substrate with a modified bituminous rubber adhesive.
Technical inquiry
Confirm the right configuration for your asset
Share the asset type, geometry, existing coating, operating environment and documentation requirements.
Discuss This Product
