No abrasive blast cleaning required for the stated system
Microcrystalline Wax Tape System
Microcrystalline Wax Corrosion Protection Tape
A microcrystalline wax-based cold-wrap system that conforms around irregular details and can be paired with an outer protective wrap.
Overview
System role and composition
Cold-wrap corrosion protection tape
- Microcrystalline wax-based impregnated wrap
- Compatible wax primer and outer protection selected by system
Key advantages
Approved product and system characteristics
Statements below apply only to this product or stated system and must be read with the listed conditions and qualifiers.
Tolerant of humidity and adverse site conditions
Conforms to flanges, weld beads, elbows, valves and bolts
Service life exceeding 10 years under severe operating conditions
Suitable for above-ground, buried and submerged applications
Can be trimmed on site
Compatible with an outer protective wrap
Custom sizes available
Typical applications
Where this solution is considered
- Flanges, weld beads and elbows
- Valves and bolts
- Above-ground, buried and submerged steel assets
Typical Sizes and Packaging
- Thickness: 2.0 mm
- Width: 50 / 100 / 150 / 200 mm
- Length: 3 m/roll
Packaging
- 50 mm: 36 rolls/carton
- 100 mm: 18 rolls/carton
- 150 mm: 12 rolls/carton
- 200 mm: 9 rolls/carton
Available grades
- Standard grade
- High-temperature grade rated up to 120°C
Product formats, packaging and available grades may vary by application and order requirements. Please confirm the current configuration with our team.
Installation overview
Confirm the complete procedure before work begins
- Inspect the substrate, geometry, existing coating and service environment.
- Prepare the surface to the requirement stated for the selected system.
- Apply the compatible primer or profiling material where the system calls for it.
- Install the primary tape with the specified overlap, tension and termination treatment.
- Add compatible outer protection where required, then inspect continuity and terminations.
Matching components
This overview supports early evaluation. The current TDS and approved project procedure remain the controlling installation documents.
Gallery

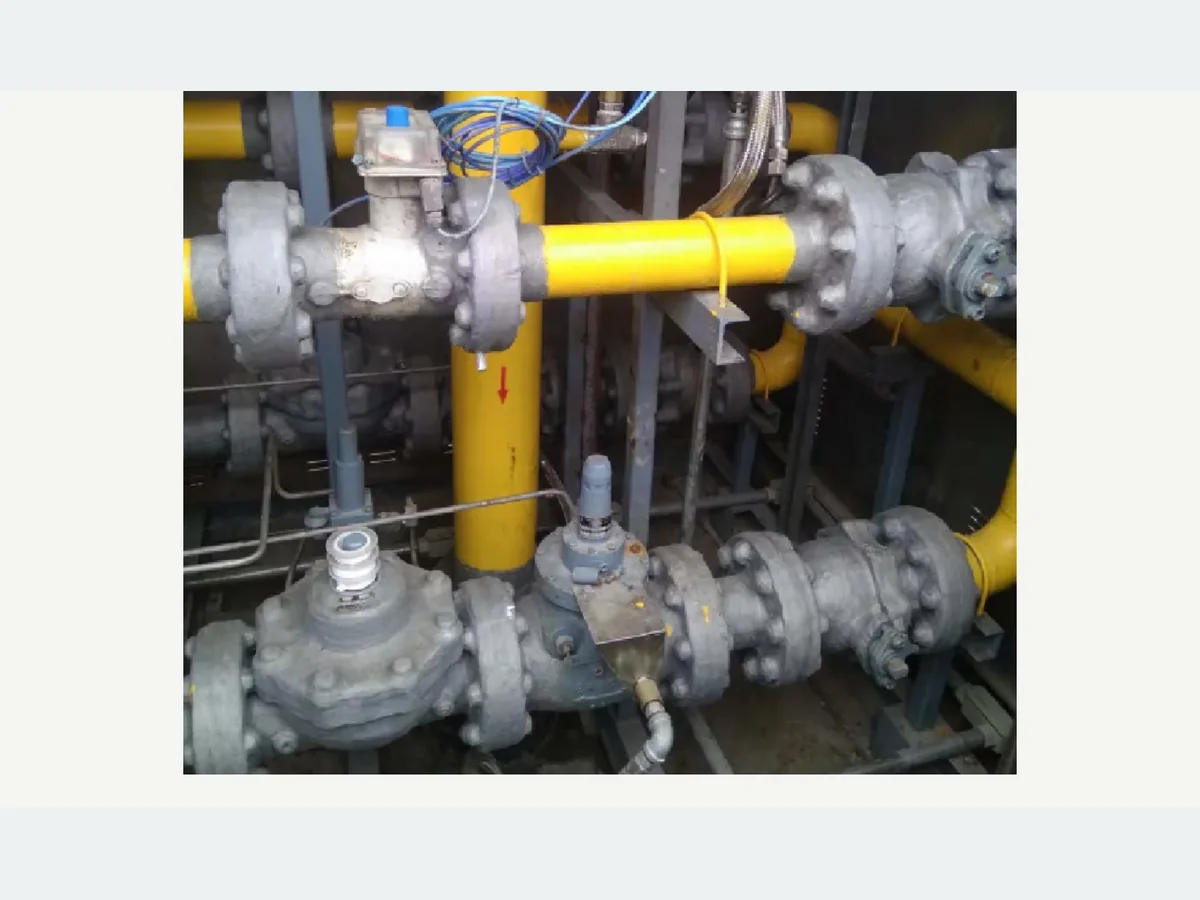

Product and application views
Related applications
Continue from product to asset
Verified related project evidence
Technical documents
Request the documents relevant to your evaluation
Product catalog, technical data, safety information and installation guidance are supplied according to the selected product and application.
Content source: Zhuohuang Technical Data Sheets UAE 2026 (primary); Zhuohuang Product Catalogue UAE 2026 (secondary).
Frequently asked questions
Which temperature grades are available?
Standard and high-temperature grades are available. The high-temperature grade is rated up to 120°C.
Where can it be used?
The documented scope includes above-ground, buried and submerged applications when the complete system is correctly specified.
Technical inquiry
Confirm the right configuration for your asset
Share the asset type, geometry, existing coating, operating environment and documentation requirements.
