UV-resistant and solar reflective
Aluminum Foil Outer Wrap Tape
Aluminum Foil Composite Corrosion Protection Tape
A cold-applied aluminum-plastic composite outer wrap for above-ground and exposed steel assets.
Overview
System role and composition
Protective and aesthetic outer wrap
- Aluminum-plastic composite outer layer
- Pressure-sensitive adhesive layer
Key advantages
Approved product and system characteristics
Statements below apply only to this product or stated system and must be read with the listed conditions and qualifiers.
Reduces solar heat exposure
High peel adhesion
Gas-tightness and flow resistance
Cold-applied with no heating required
Weather and moisture resistant
Typical applications
Where this solution is considered
- Above-ground and exposed steel assets
- Protective and aesthetic outer wrapping
- Outer protection for compatible petrolatum or viscoelastic systems
Typical Sizes and Packaging
- Thickness: 1.0–2.0 mm
- Width: 100 / 150 / 200 mm
- Length: 10 m/roll
Product formats, packaging and available grades may vary by application and order requirements. Please confirm the current configuration with our team.
Installation overview
Confirm the complete procedure before work begins
- Inspect the substrate, geometry, existing coating and service environment.
- Prepare the surface to the requirement stated for the selected system.
- Apply the compatible primer or profiling material where the system calls for it.
- Install the primary tape with the specified overlap, tension and termination treatment.
- Add compatible outer protection where required, then inspect continuity and terminations.
Matching components
This overview supports early evaluation. The current TDS and approved project procedure remain the controlling installation documents.

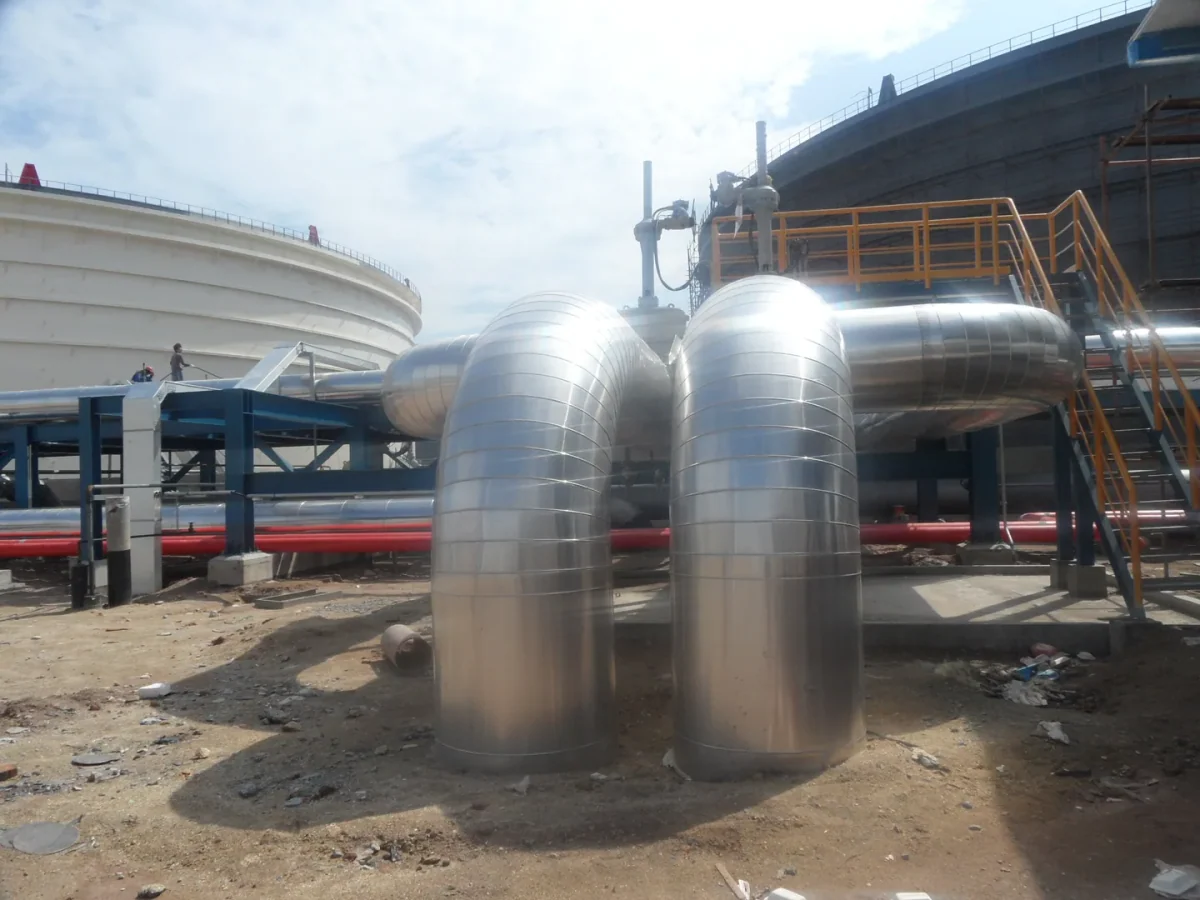

Gallery
Product and application views
Related applications
Continue from product to asset
Verified related project evidence
Technical documents
Request the documents relevant to your evaluation
Product catalog, technical data, safety information and installation guidance are supplied according to the selected product and application.
Content source: Zhuohuang Technical Data Sheets UAE 2026 (primary); Zhuohuang Product Catalogue UAE 2026 (secondary).
Frequently asked questions
Does installation require heating?
No. The product is cold-applied and does not require heating.
Is it a standalone corrosion barrier?
It is commonly selected as a protective outer wrap. The underlying corrosion protection system must be specified for the asset and environment.
